Basic Info.
Model NO.
PE006
Usage
Industrial, Home, Agriculture, Hospital, Mbbr Filter Media
Material
HDPE,PE
Color
White, Black, Red, Blue, Customerised
Density
0.94-0.97g Per Cubic Meter
Film Forming Time
5-10days
Packing
Bag, Carton, Custoerised
Service Life
More Than 15years
Transport Package
Bag, Carton and Customized Packing
Specification
5*10mm
Trademark
JINHUI
Origin
Shandong, China
HS Code
3926909090
Production Capacity
1500cubic Meter Per Month
Product Description

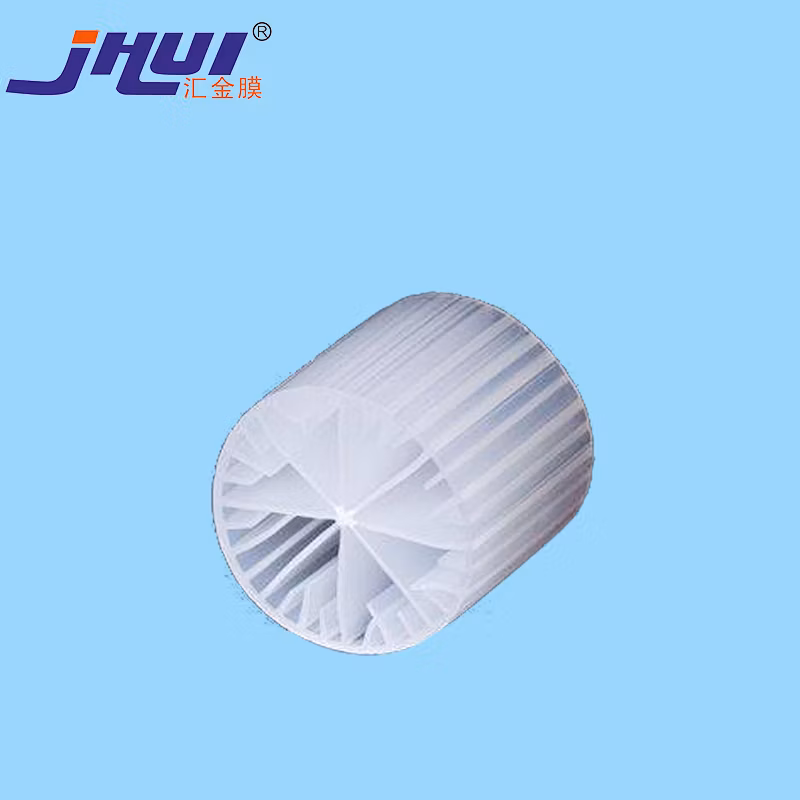

MBBR Moving Bed Bio-film Reator
Product Introduction
Moving Bed Bio-film Reactor( referred to as MBBR) is a kind of new bio-film reactor has high efficiency ,strong ability to loading, high treatment efficiency, sludge age ,less residual sludge ,nitrogen and phosphorus removal effect is good, no sludge expansion, has been widely used in foreign countries; biological suspended filler is a core component od MBBR process; The development, production of high activity of suspended packing, is to ensure the effective operation of the MBBR process.
Product Advantages
1. Excellent mechanical properties. We used 100% Virgin and filled HDPE materials,which
ensure its excellent mechanical properties and its service life up to 10 years;
2. Special design of surface, stronger bio-film growth capacity;
3. Large surface area , high voidage, Attachment more periphyton biomass
4. Adding hydrophilic gene cluster and other trace elements, only 3-15 days hanging film
5. Excellent impact strength, strong gas shear capacity;
6. without any holder,easy flow, save engery and space.
7. Unique design of structure and shape according to hydromechanics, strong
three-dimensinal flow dynamics in the water.
Technical Parameters

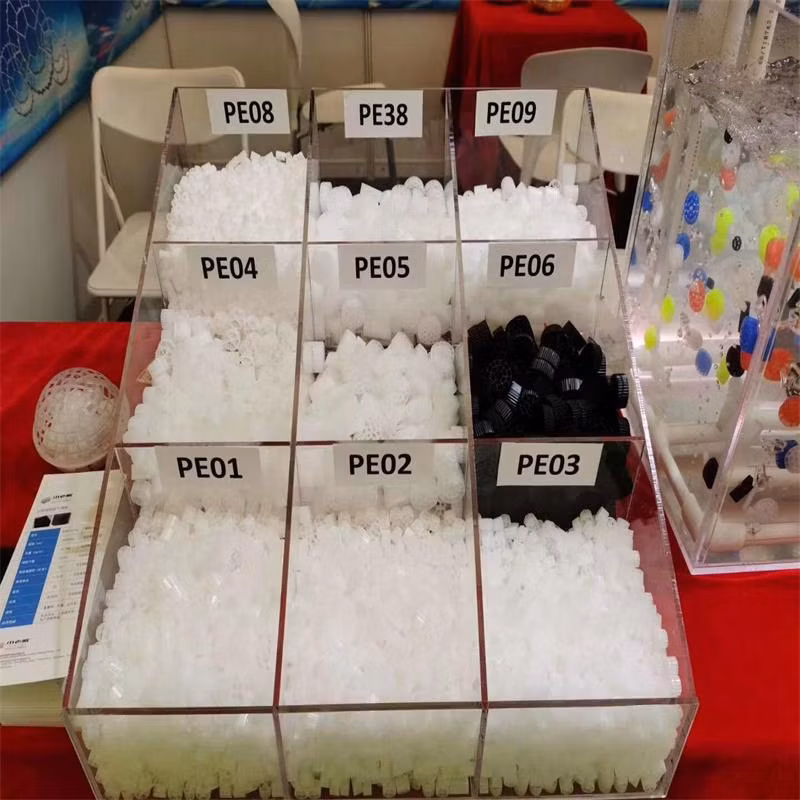

| Item | Spec.(mm) | Design | QTY (PCS/M3) | Surface Area (m2/m3) | Void Ratio | Dosing Ratio | Nitrificatin Efficiency (gNH4-N/m3.d) | BOD5 Oxidation Efficiency (kgBOD5/m3.d) | COD Oxidation Efficiency (kgCOD/m3.d) | Weight (kg/M3) |
| PE01 | Φ12*9 | 4 holes | >630,000 | >800 | >88% | 15-70% | 400-1200 | 5-9kg | 6-10kg | 120 |
| PE02 | Φ11*7 | 4holes | >930,000 | >900 | >86.5% | 15-68% | 400-1200 | 6-10kg | 7-11kg | 135 |
| PE03 | Φ10*7 | 5holes | >990,000 | >1000 | >85.2% | 15-70% | 400-1200 | 7-11kg | 8-12kg | 145 |
| PE04 | Φ16*10 | 6holes | >260,000 | >800 | >88% | 15-67% | 400-1200 | 5-9kg | 6-10kg | 120 |
| PE05 | Φ25*10 | 19holes | >118,000 | >600 | >90.5% | 15-65% | 400-1200 | 3-7kg | 4-8kg | 90 |
| PE08 | Φ5*10 | 8holes | >154,000 | >3500 | >87% | 15-70% | 500-1400 | 6-10kg | 7-11kg | 130 |
| PE09 | Φ15*15 | 8holes | >2,300,000 | >900 | >85.2% | 15-65% | 500-1400 | 7-11kg | 8-12kg | 145 |
| PE38 | Φ25*10 | 38holes | >118,000 | >800 | >90% | 15-70% | 500-1200 | 8-12kg | 9-13kg | 107 |
Application
The Sewage plant upgrade project , improve the standard and quantity l New sewage treatment project of MBBR and Biological Aerated Filter process
l Biochemical treatment of reclaimed water
l River regulation denitrification and phosphorus removal
l Aquaculture in addition to ammonia nitrogen, water purification
l Biological filter media is used for biological deodorization tower
