Product Description
Place of Origin: Jiangsu, China (Mainland)
Brand: Waterman
Model Number: ZJZ-3000EPAM
Capacity: 3000 L/h or customized
Main structure: PVC three-tank dissolving device
Preparation capacity: 15 Kg/h (powder)
PAM Preparation concentration 0.1-0.5%
Dosage: maximum 0.5 mg/L, minimum 0.03-0.2 mg/L
Control mode: Full automatic control, PLC+ touch screen
Power supply: 380V plus or miuns 10%
Certification: ISO9001:2015

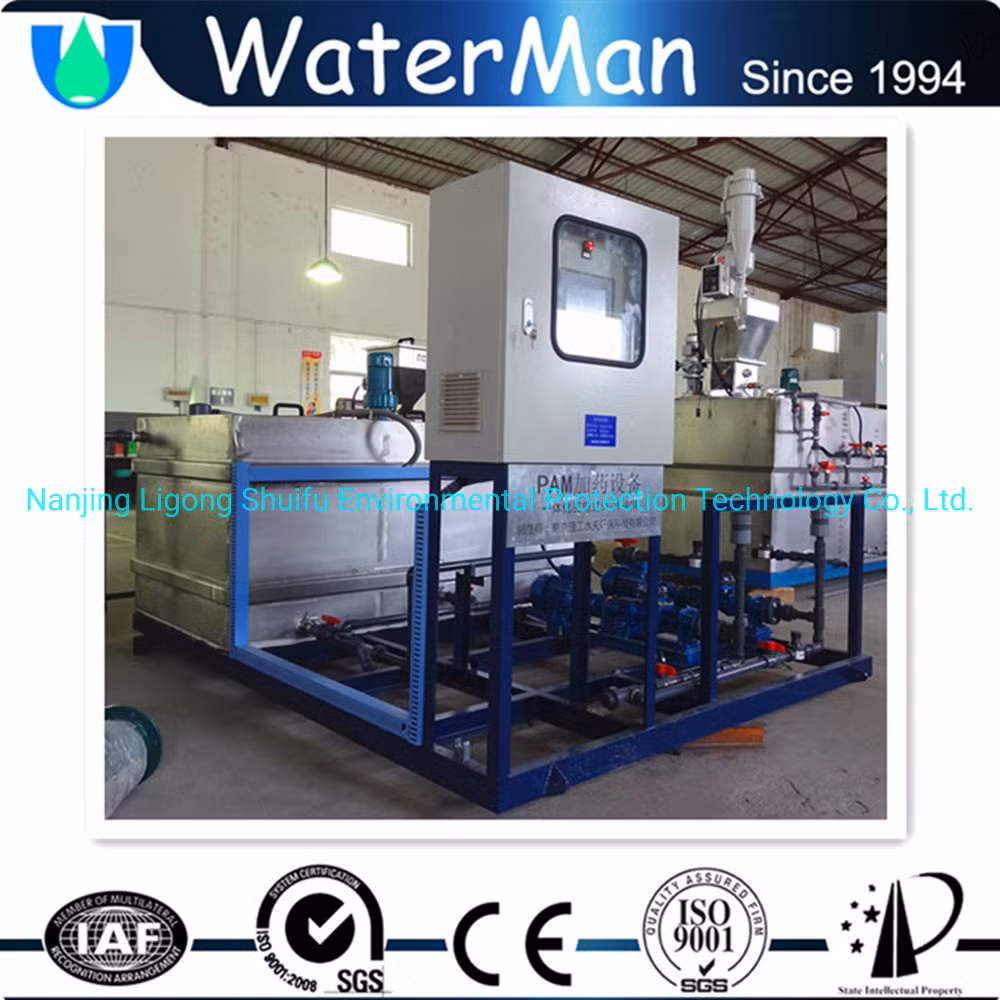

PAM chemical feeding system is in applicable to water plants, sewage plants in water treatment process of adding flocculent.
It is mainly composed of dissolving tank, storing tank and flocculent feeding machine.
The dosage can be adjusted through adjustment of the metering pump stroke manually.
The metering pump has been equipped with a safety valve at both ends. When the pressure exceeds 0.60Mpa, the safety valve open and equipment stop.
Main parameters:
Working temperature: 5 ~ 40 degrees CelsiusOperating voltage: 380V plus or minus 10%
There should be no strong electric field and magnetic field interference around equipment.
Maximum pressure of water-pipe-line: <0.7Mpa
Function: PLC control
Capacity: 3000L/h
